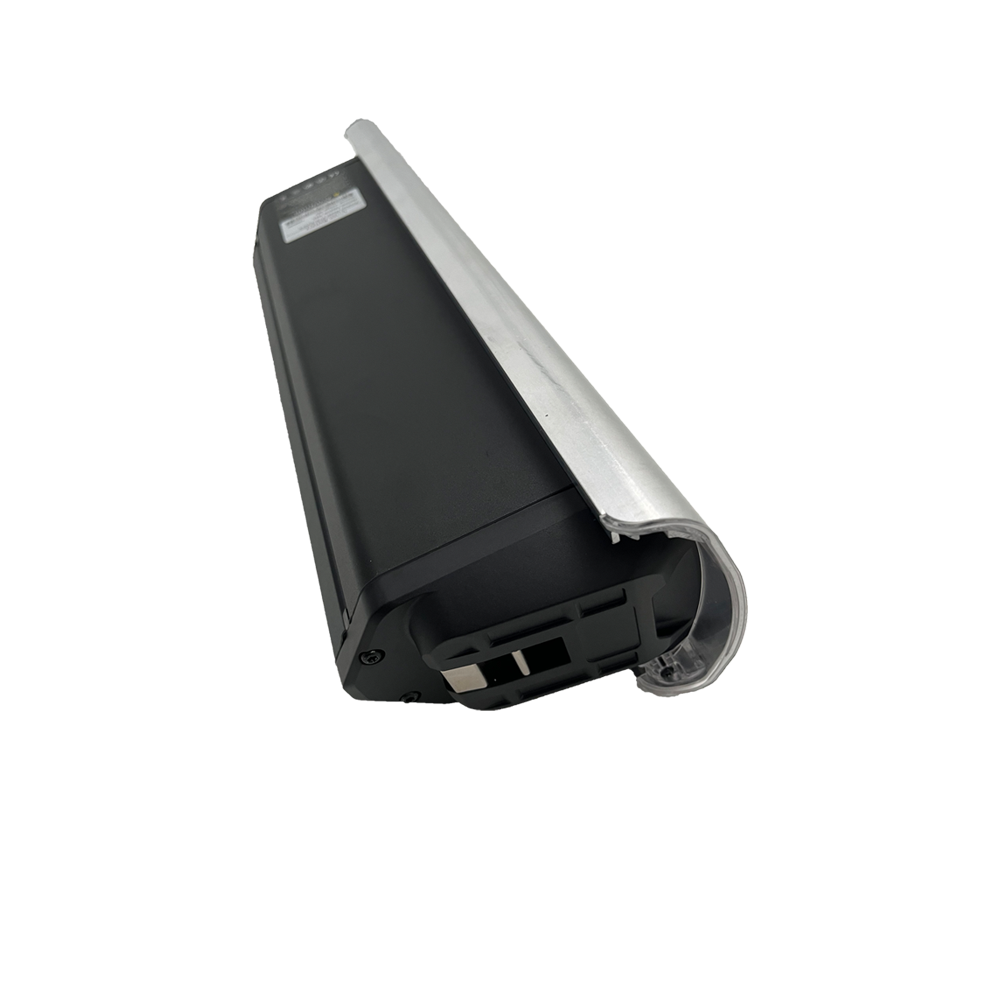

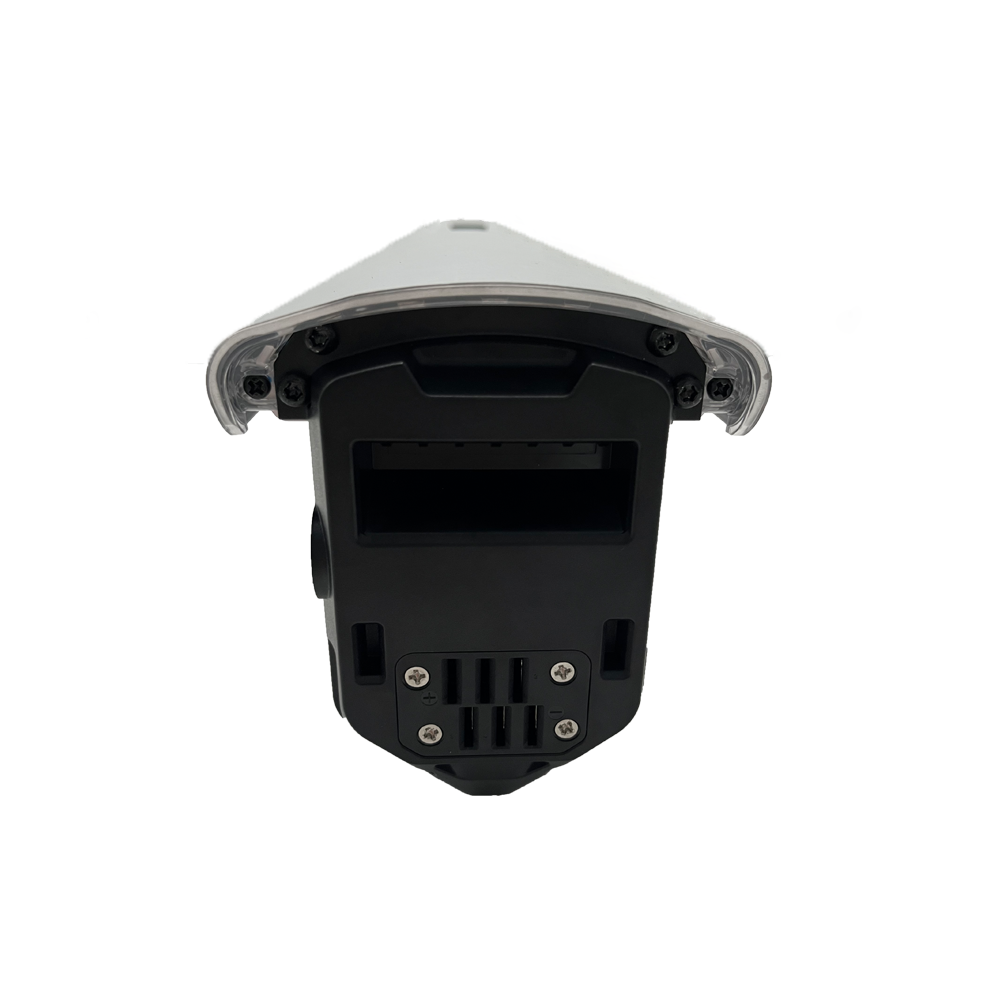

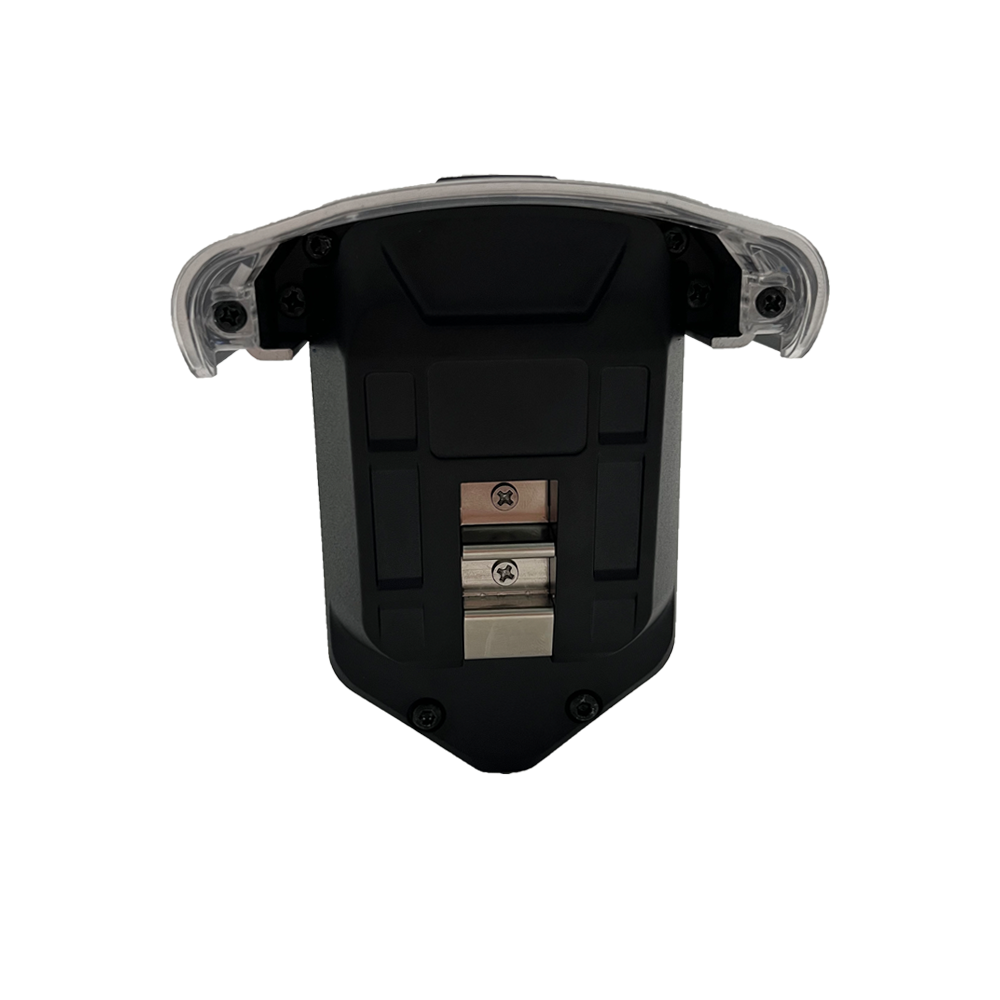

    48V 20AH High Performance Lithium Battery for Electric Tricycle and E-bike
    Electric bicycle lithium battery

    48V 20AH High Performance Lithium Battery for Electric Tricycle and E-bike

    This is "PYROXENE" high-performance lithium battery, suitable for electric bicycle, electric tricycle, etc.
    The product is made of high quality A-grade brand battery core with high energy density, which improves the range of e-bike and e-tricycle.
    The lithium battery is equipped with an intelligent battery management system with overcharge protection, overdischarge protection, short-circuit protection, etc., which can perform the corresponding protective actions to effectively protect the safety of the battery and related equipment and reduce the loss of failure.
    The lithium batteries have a relatively low self-discharge rate, providing long-lasting power support and improving the efficiency of battery use.
    The product adopts lightweight design to reduce overall weight and improve product manoeuvrability.
      Contact us
      product details

      Customizable Features of EBike Lithium Ion Battery

      Voltage

      Battery Pack Nominal Voltage Can Be Customized

      Capacity

      Battery Pack Nominal Capacity Can Be Cutomized

      Cell Type

      18650/21700/26650/32700..etc cylindrical cells for option

      BMS

      BMS protection functions and type Can Be Customized

      Shell

      Customized battery housings, various materials, diverse designs.

      Charger

      Custom chargers, various specs, meet personalized needs.

      product details

      Advantage

      Aging test
      Aging test

      Aging Test

      Our batteries undergo 100% aging and full inspection testing to ensure stable operation and reliable performance of lithium batteries.

      demo188-advan-bg1
      Intelligent battery management system

      Intelligent Battery Management System

      The product is equipped with an intelligent battery BMS management system, which intelligently monitors battery charging, discharging, and temperature to ensure the safe, stable, and efficient operation of the battery system.

      demo188-advan-bg1
      Customized services

      Customized Services

      We can provide customized solutions for lithium batteries based on your diverse needs, meeting your exact requirements and creating distinctive product services.

      demo188-advan-bg1
      Quality assurance

      Quality assurance

      Using high-quality branded battery cells, with sufficient capacity, safety and reliability, long service life, and providing comprehensive after-sales service.

      Parameter

      Parameter information
      Product model PYR-EV075
      Nominal voltage (V) 48V（Customizable）
      Charging Voltage 54.6V
      Nominal Capacity (AH) 20AH（Customizable）
      Use voltage 32.5V-54.6V
      Cell type 21700
      Number of battery cells 52pcs
      Discharge current ≤35A
      Usage temperature charge：0℃-45℃；discharge-20℃-55℃；
      Life 1000次
      Product Size 390*110*125mm
      Weight 5.2KG

      FAQs

      • 1.How to judge the brand of lithium batteries good or bad?

      • 2.Is it normal for the battery to get hot when charging the lithium battery of e-bike?

      • 3. What should I do if there is a sudden power failure when charging the lithium e-bike battery?

        Check whether the power socket and charger are normal and make sure the connection is stable. If the problem persists, the battery or charger may be faulty and professional inspection is required.
