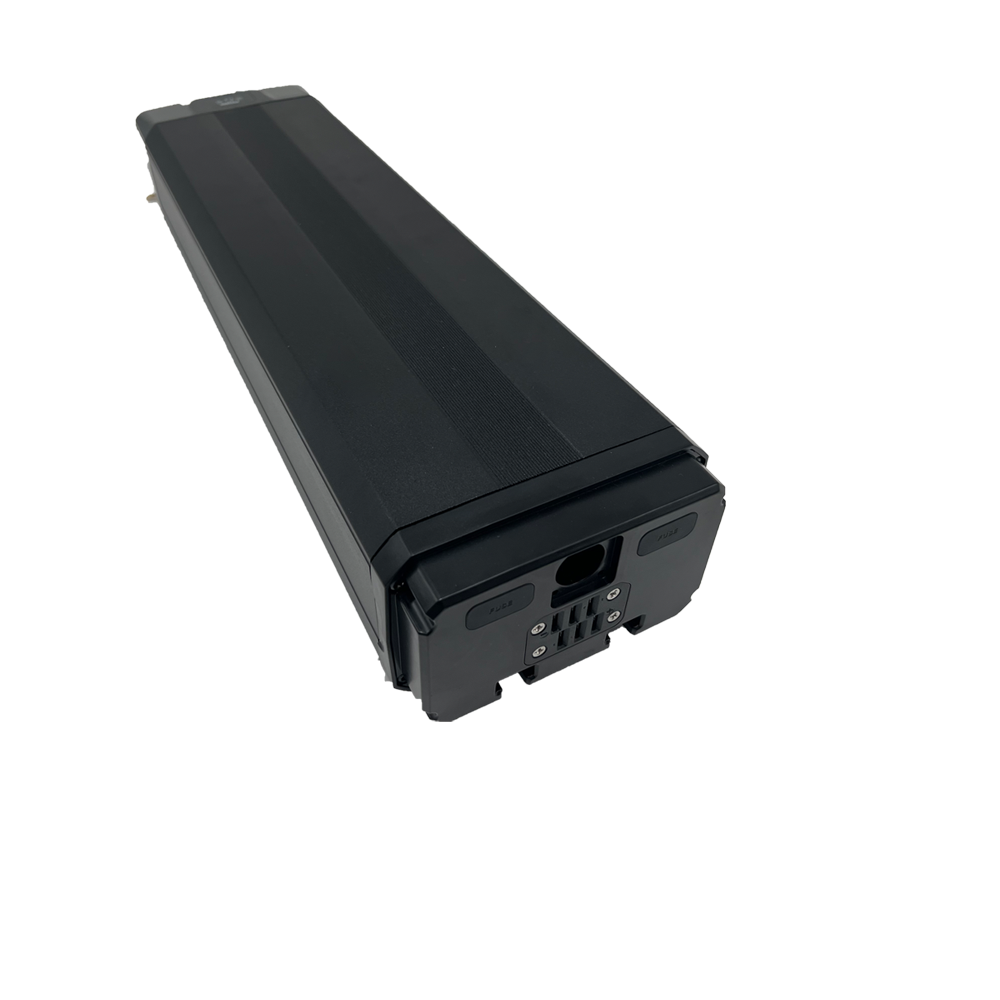

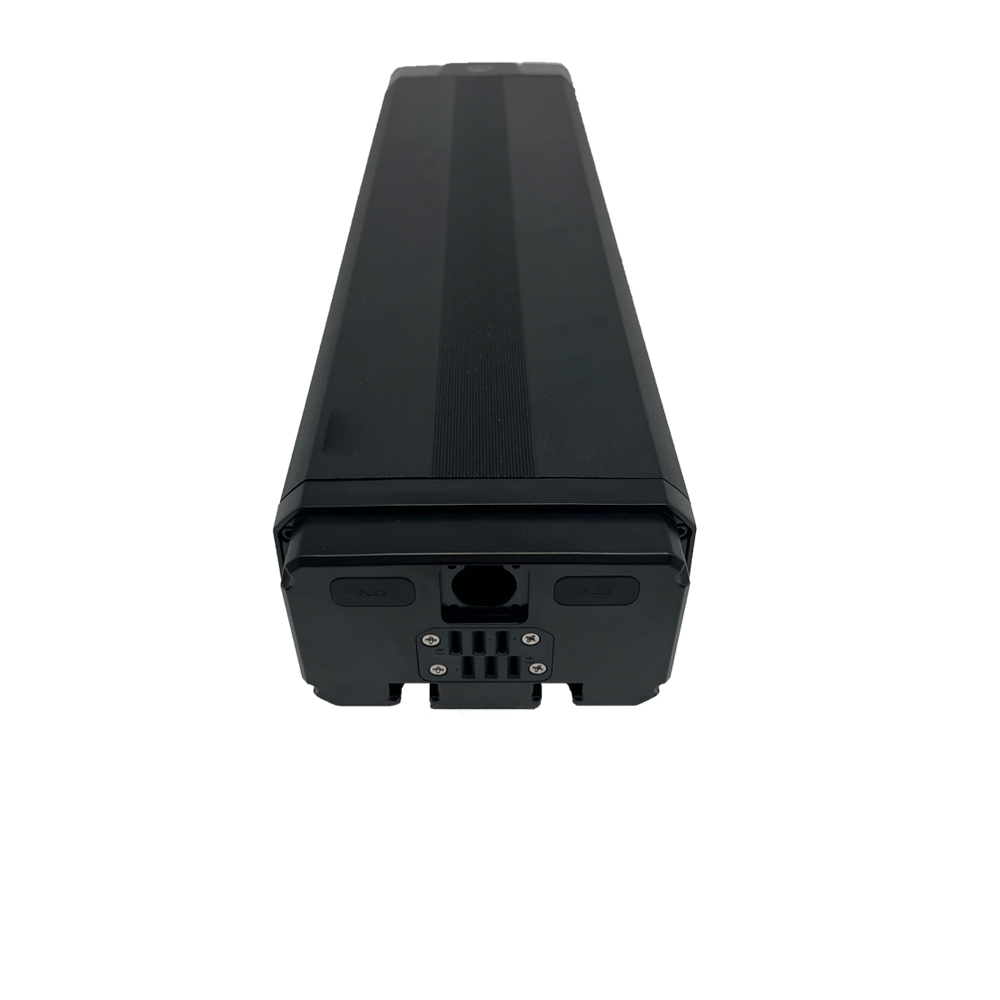

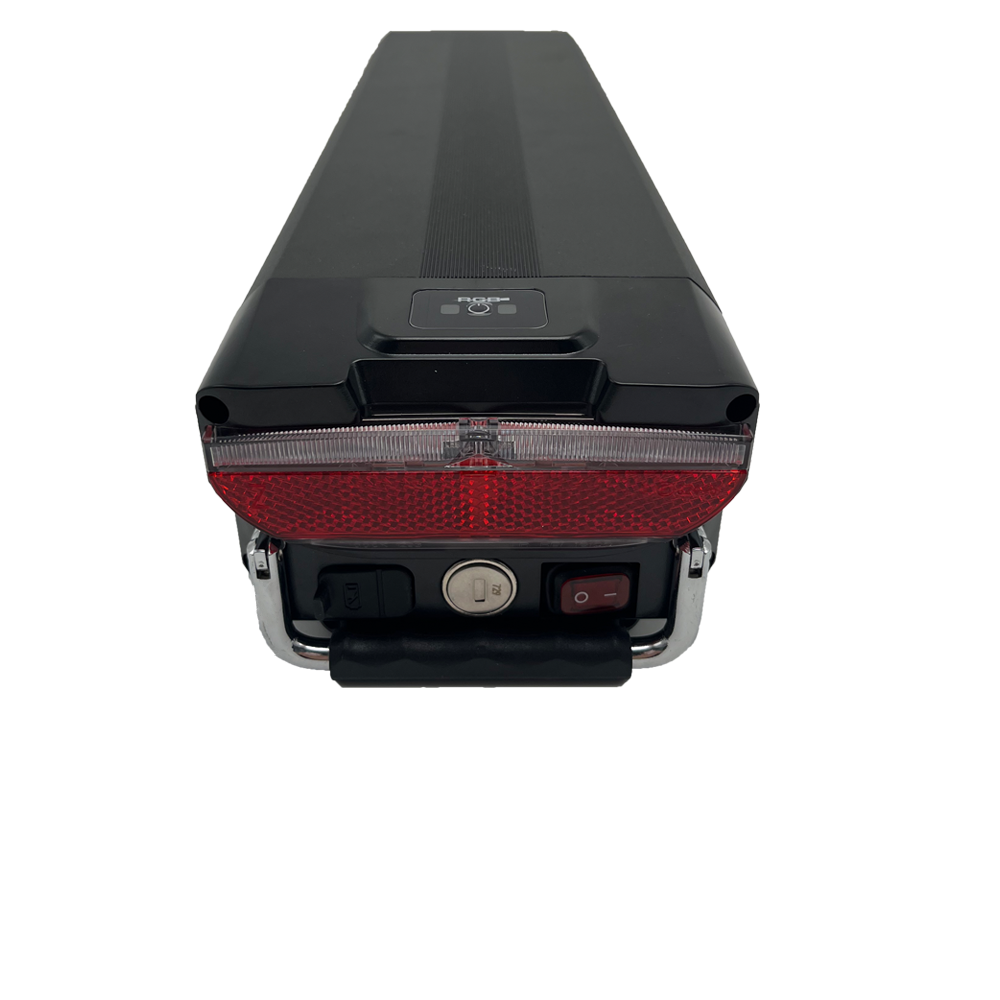

48V 30AH Customised High Performance Electric Tricycle Lithium Battery
Voltage
Battery Pack Nominal Voltage Can Be Customized
Capacity
Battery Pack Nominal Capacity Can Be Cutomized
Cell Type
18650/21700/26650/32700..etc cylindrical cells for option
BMS
BMS protection functions and type Can Be Customized
Shell
Customized battery housings, various materials, diverse designs.
Charger
Custom chargers, various specs, meet personalized needs.
Aging Test
Our batteries undergo 100% aging and full inspection testing to ensure stable operation and reliable performance of lithium batteries.
Intelligent Battery Management System
The product is equipped with an intelligent battery BMS management system, which intelligently monitors battery charging, discharging, and temperature to ensure the safe, stable, and efficient operation of the battery system.
Customized Services
We can provide customized solutions for lithium batteries based on your diverse needs, meeting your exact requirements and creating distinctive product services.
Quality assurance
Using high-quality branded battery cells, with sufficient capacity, safety and reliability, long service life, and providing comprehensive after-sales service.
Parameter
| Parameter information | |
| Product model | PYR-EV074 |
| Nominal voltage (V) | 48V（Customizable） |
| Charging Voltage | 54.6V |
| Nominal Capacity (AH) | 30AH（Customizable） |
| Use voltage | 32.5V-54.6V |
| Cell type | 21700 |
| Number of battery cells | 78pcs |
| Discharge current | ≤45A |
| Usage temperature | charge：0℃-45℃；discharge-20℃-60℃； |
| Life | 1000次 |
| Product Size | 450*130*90mm |
| Weight | 7.3KG |
-
1. What does it mean that the charger keeps green light when the lithium battery of e-bike is charging?
-
2. Is it normal for the charger and battery to be hot when charging the e-bike lithium battery?
-
3. When charging the lithium e-bike battery, can I put it in the bicycle for charging?
Usually it is not recommended to charge the battery in the bike because the space inside the bike is narrow and the heat dissipation is poor, which will easily cause the battery and charger to overheat, and there is a safety risk.
