Battery Load Testing：Everything You Need to Know

2026-07-04

Lithium batteries serve as the core energy storage components of the New Energy era, widely used in electronic devices, energy storage systems, and electric mobility applications. However, prolonged use leads to capacity degradation, increased internal resistance, and other performance deterioration issues. Lithium battery load testing is a critical method for evaluating a battery's real-world operating condition, enabling users to accurately assess State of Health (SOH) and prevent safety hazards.

1. What is Lithium Battery Load Testing?

Lithium battery load testing is a method that applies controlled simulated loads to a battery, measuring key parameters such as voltage, current, capacity, and internal resistance under specific operating conditions to evaluate the battery's actual output capability and health status.

Unlike simple voltage measurement, load testing simulates real-world discharge scenarios, authentically reflecting Battery Performance under loaded conditions. By monitoring voltage drop magnitude, discharge duration, and temperature changes during testing, technicians can determine whether the battery exhibits aging, abnormal internal resistance, or insufficient capacity.

2. Why is Lithium Battery Load Testing Important?

Comprehensive Battery Performance Assessment
By simulating various operating conditions—including overcurrent, short circuit, high temperature, and low temperature—load testing comprehensively evaluates battery capacity, efficiency, and cycle life. Observing whether voltage gradually declines without falling below specified thresholds serves as a critical basis for determining battery health status.

Prevent Security Risks in Advance
Battery load testing can identify potential risks such as overload, short circuit, and aging in advance by simulating overcurrent, large pulse, and high-temperature load conditions, avoiding equipment downtime and data loss.

BMS Optimization and Lifecycle Extension
The load test data provides a basis for parameter calibration of the Battery Management System (BMS), helping to optimize charging and discharging strategies, balancing algorithms, and thermal management design, thereby extending battery cycle life.

Certification and Export Compliance
Complete load testing reports are mandatory for exporting lithium battery products. These reports constitute core documentation for UN38.3, IEC 62133, and UL 2054 certifications, enhancing product market access capabilities.

3. How to Perform Lithium Battery Load Testing?

1.Pre-Test Inspection
(1).Inspect battery appearance: exclude abnormalities such as swelling, electrolyte leakage, or deformation

(2).Confirm battery State of Charge (SOC) is above 80% to ensure test accuracy

(3)Clean battery terminals to ensure proper contact

2.Connect Test Equipment
(1).Connect the electronic load or tester's positive and negative clips to the corresponding battery terminals

(2).Verify secure connections to prevent test interruption

3.Set Parameters and Execute Test
(1).Set discharge current according to battery specifications (typically at 0.2C–1C rate)

(2).Set cut-off voltage (typically 2.5V–3.0V for ternary lithium, 2.0V–2.5V for LiFePO₄)

(3).Initiate testing and monitor voltage, current, and temperature changes in real time

4.Record and Analyze Results
(1).Record discharge capacity, voltage curves, and internal resistance data

(2).Compare against rated parameters: if actual capacity falls below 80% of nominal capacity or internal resistance increases by over 50%, battery replacement is recommended

(3)Watch for abnormal signals: sudden voltage drops or rapid temperature rise indicate battery malfunction

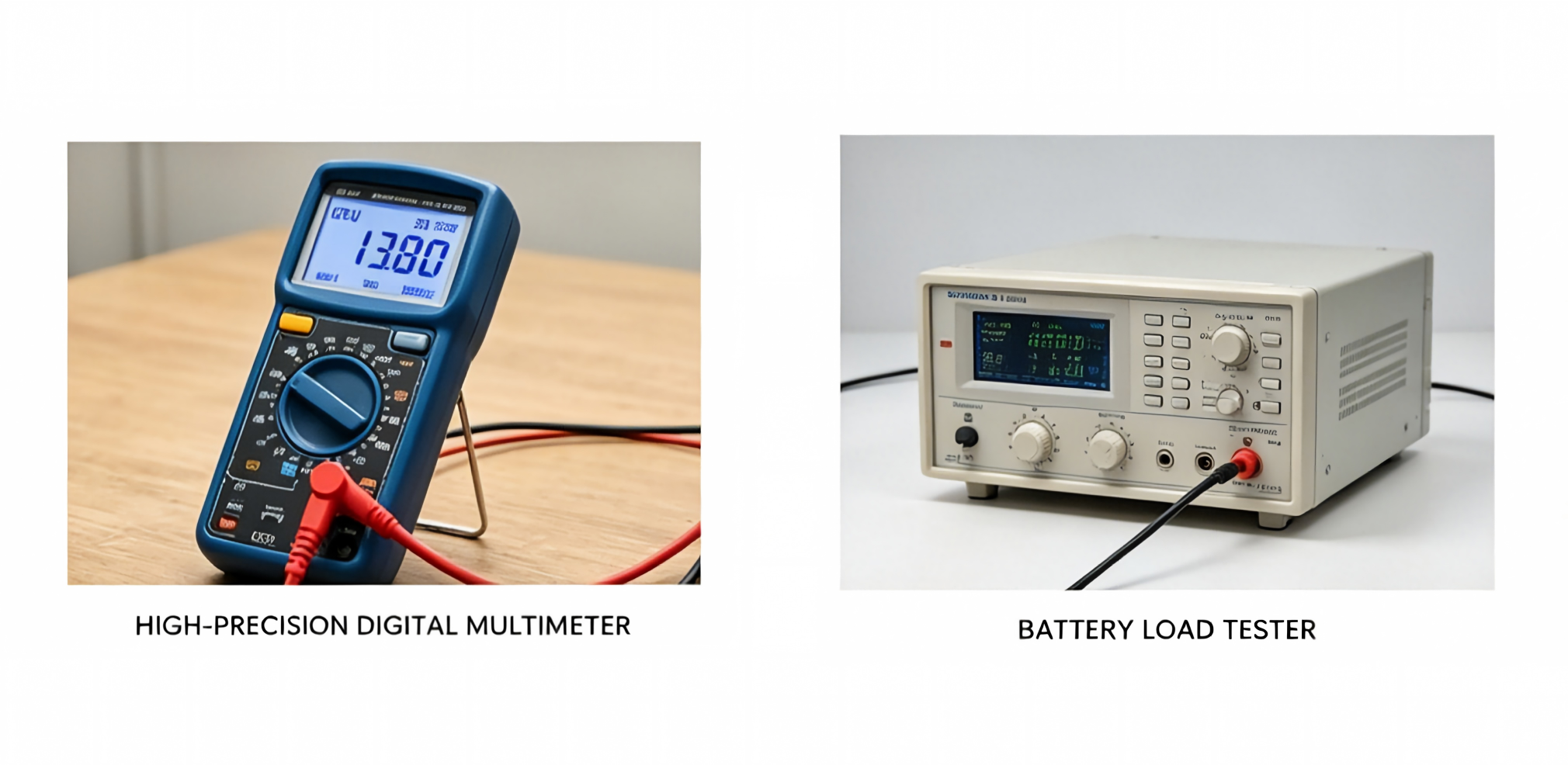

4. Equipment Used for Lithium Battery Load Testing

1.Battery Load Tester
An integrated device combining electronic load, temperature measurement, and data storage functions. Portable and user-friendly, ideal for rapid production-line sampling and after-sales battery health diagnostics.

2. High-Precision Digital Multimeter
Assists in real-time calibration of load voltage and current, capturing instantaneous minor voltage drops to supplement and verify tester data accuracy.

5. Conclusion

Lithium battery load testing is a core component in ensuring battery safety, extending service life, and optimizing system design. Through scientific testing procedures and professional equipment, users can effectively identify battery hazards, extend operational lifespan, reduce safety risks, and meet global lithium battery compliance certifications. Furthermore, load testing data provides critical support for cell selection, pack structure design, and thermal management solutions.
