How to Choose the Right Lithium Battery for Medical Wearable Devices
2026-05-29
Medical wearable devices (such as blood glucose monitors, smart ECG patches, portable respiratory monitors, etc.) are gradually being widely used.
These devices are worn close to the body, collecting real-time health data such as blood sugar, blood pressure, heart rate, blood oxygen, and body temperature, and converting the signals into actionable digital information.
However, the choice of Battery is crucial for devices to achieve lightweight, comfortable, long-lasting, and safe reliability.
1. What is a Lithium Battery for Medical Wearables?
A medical-grade Lithium Battery for wearable devices is an ultra-thin, flexible, or micro lithium-ion cell that meets medical safety standards. It is designed for long-term, low-power, body-worn operation, mostly using soft-pack polymer, ultra-thin custom-shaped, or high-consistency cells with a medical-grade BMS. It must satisfy biocompatibility, low leakage, high stability, vibration resistance, and temperature tolerance, and comply with certifications including IEC 60601, IEC 62133, UN38.3, and ISO 13485.
Most medical wearables today use Lithium Polymer (LiPo) batteries due to their high energy density, ultra-thin customizable form factors, and strong safety performance—ideal for the dual demands of slimness and long runtime. LiPo batteries are usually equipped with an intelligent BMS for real-time voltage, current, and temperature monitoring to ensure safe operation in all usage scenarios.
2. Importance of Selecting the Right Lithium Battery
In the medical field, lithium batteries are directly related to patient safety, device compliance, data quality, and long-term costs.
1. Ensuring patient safety
Batteries certified to UL, IEC 62133, UN38.3 provide full overcharge, over-discharge, short-circuit, and thermal runaway protection, preventing leakage, fire, and other hazards for body-worn devices.
Batteries certified to UL, IEC 62133, UN38.3 provide full overcharge, over-discharge, short-circuit, and thermal runaway protection, preventing leakage, fire, and other hazards for body-worn devices.
2. Meet medical compliance requirements
IEC 62133 is a globally recognized safety testing standard for rechargeable batteries and a prerequisite for medical devices to pass IEC 60601-1 certification as a whole. Only by selecting compliant batteries can we smoothly obtain market access qualifications and accelerate the product launch process.
IEC 62133 is a globally recognized safety testing standard for rechargeable batteries and a prerequisite for medical devices to pass IEC 60601-1 certification as a whole. Only by selecting compliant batteries can we smoothly obtain market access qualifications and accelerate the product launch process.
3. Ensure stable and reliable monitoring data
Medical wearable devices require long-term continuous operation to collect key physiological data such as blood glucose and electrocardiogram. A battery with stable performance can provide smooth voltage output, avoid data deviation caused by power supply fluctuations, and ensure the accuracy of diagnostic results.
Medical wearable devices require long-term continuous operation to collect key physiological data such as blood glucose and electrocardiogram. A battery with stable performance can provide smooth voltage output, avoid data deviation caused by power supply fluctuations, and ensure the accuracy of diagnostic results.
4. Reduce long-term usage costs
High quality lithium batteries have a longer cycle life (≥ 500 times), reducing the need for frequent battery replacement. For patients who require long-term monitoring, this not only reduces personal and healthcare system expenses, but also improves the convenience of device use.
High quality lithium batteries have a longer cycle life (≥ 500 times), reducing the need for frequent battery replacement. For patients who require long-term monitoring, this not only reduces personal and healthcare system expenses, but also improves the convenience of device use.
3. How to Choose the Right Lithium Battery for Medical Wearables？
1. Ensure Safety Certification Compliance

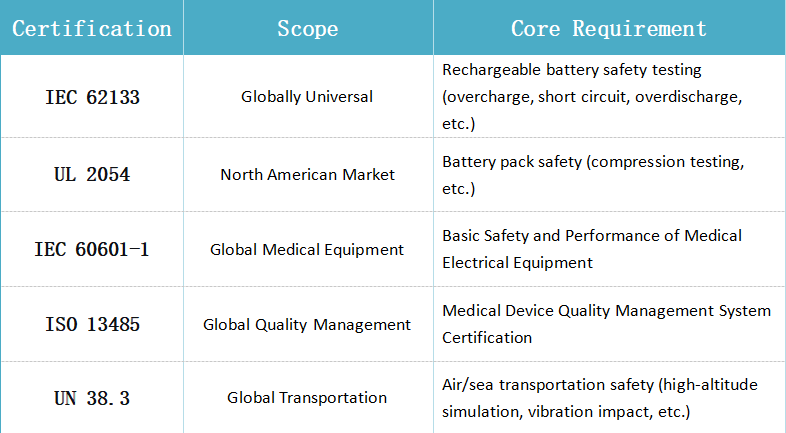

Safety is the top priority for medical device power supplies. Mandatory certifications include:
Safety is the top priority for medical device power supplies. Mandatory certifications include:

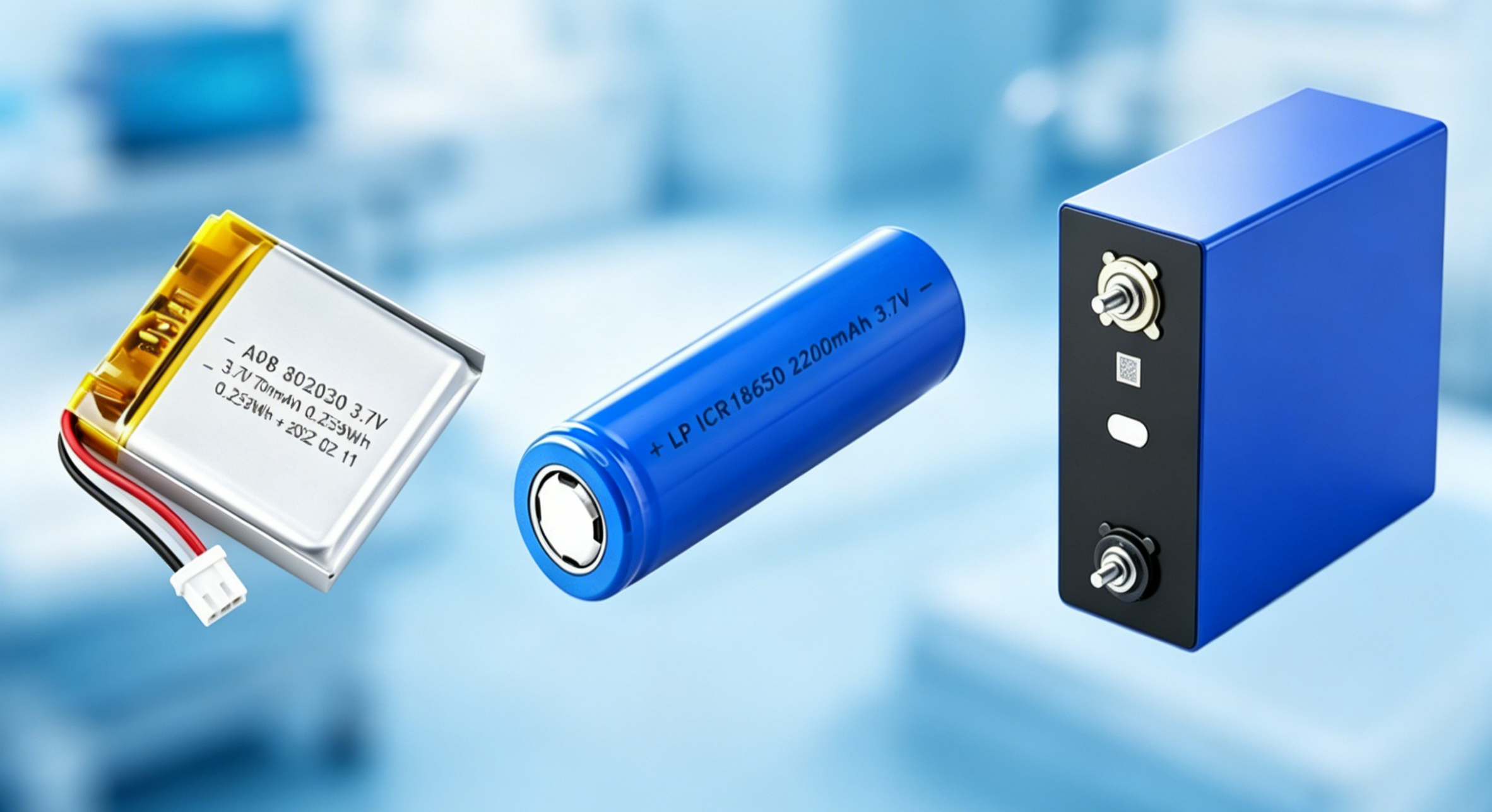

2. Choose the Right Cell Chemistry & Type
Medical wearable devices have 3 core requirements for batteries: lightweight, safe, and customized.
Medical wearable devices have 3 core requirements for batteries: lightweight, safe, and customized.
Lithium polymer battery
It adopts gel or solid electrolyte, with higher safety, and can be made into ultra-thin, round, arc and other customized shapes, supporting a variety of unique curved surface equipment design. The energy density can reach 300-400 Wh/kg, the cycle life can reach 1500-2000 times, and the monthly self discharge rate is less than 1%. It is very suitable for wearable medical devices that require long-term continuous use and high requirements for wearing comfort.
Lithium ion (cylindrical/square) batteries
The cycle life is about 500-1000 times, the energy density is 150-250 Wh/kg, the cost is lower, but the thickness is larger (≥ 18mm), the shape is fixed, and it is more suitable for implantable medical devices or large portable devices, rather than wearable close fitting devices.
The cycle life is about 500-1000 times, the energy density is 150-250 Wh/kg, the cost is lower, but the thickness is larger (≥ 18mm), the shape is fixed, and it is more suitable for implantable medical devices or large portable devices, rather than wearable close fitting devices.
Lithium iron phosphate (LFP) battery
Extremely high safety and excellent cycle life, but relatively low energy density (120-160 Wh/kg), suitable for scenarios that do not require high energy density but highly pursue safety, such as emergency equipment backup power supply.
Extremely high safety and excellent cycle life, but relatively low energy density (120-160 Wh/kg), suitable for scenarios that do not require high energy density but highly pursue safety, such as emergency equipment backup power supply.
Overall, for medical wearable devices, lithium polymer batteries remain the mainstream choice due to their comprehensive advantages of being lightweight, flexible, customizable in shape, strong in safety performance, and high in cycle life.
3. Evaluate the Medical-Grade BMS
The Battery Management System (BMS) is core to safety and stability.
The Battery Management System (BMS) is core to safety and stability.
Select a BMS with:
High-precision SOC monitoring: error ≤ 3%
Three-level protection: automatic cutoff for overcharge, over-discharge, overcurrent
Real-time temperature monitoring: Monitor the temperature of the battery cells ，automatically reduce the load or power in case of abnormalities
Stable voltage output: Voltage fluctuation ≤ ± 2%, ensuring that medical sensor signals are not disturbed
Data logging & traceability: serializable cells for failure analysis.
4. Assess Environmental Adaptability
Medical wearable devices may be used under different climatic conditions, and the environmental adaptability of batteries cannot be ignored.
Medical wearable devices may be used under different climatic conditions, and the environmental adaptability of batteries cannot be ignored.
(1)Working temperature range: It should cover at least -20 ℃ to 60 ℃, and extreme scenarios (such as field emergency equipment) should support low-temperature start-up at -40 ℃
(2)Cycle life: ≥ 500 cycles, capacity retention rate ≥ 80%; It is recommended to choose products with higher cycle life for continuous monitoring equipment to reduce frequent replacement
(3)Waterproof and dustproof rating: at least IP67, sweat proof and waterproof, suitable for daily wear and outdoor use
4. Conclusion
Selecting the right lithium battery is critical to patient safety, data accuracy, and regulatory compliance for medical wearable devices. Only medical-grade, form-fitting, long-lasting, and reliably manufactured batteries can support stable long-term operation and ensure accurate monitoring and user safety.
